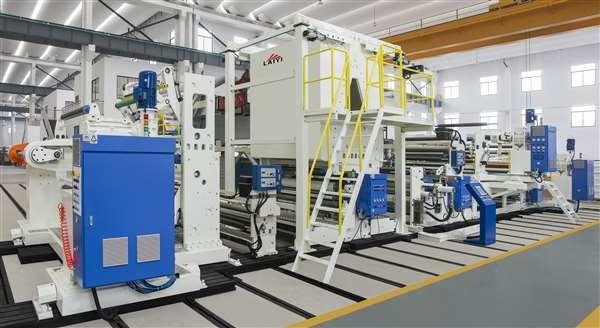

    Color Packaging Film Laminating Machine With 1200/1400/1700/2200/2500mm Width

    Ask Lasest Price
    Brand Name : Laiyi
    Model Number : ACP
    Price : $70,000-400,000
    Payment Terms : L/C , T/T
    Supply Ability : Max 20sets per month
    Delivery Time : 90-150 days
    Certification : CE
    • Product Details
    • Company Profile

    Color Packaging Film Laminating Machine With 1200/1400/1700/2200/2500mm Width


    Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.

    Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service Professional extrusion laminating line established by more than 10 years of working can provide long time services for large enterprises both at home and abroad with professional researches.


    一,Color Printing Packaging Extrusion Laminating Machine

    • Color printing packaging paper is widely used to
    • 1)food packaging materials and liquid packaing materials;
    • 2)Non-woven fabrics compound with color printing films/ woven fabrics compound with alumium foils/ aluminum-plastic compound etc.
    • Can be Co-extrusion and Mono extrusion line
    • We also make customized machine.
    • This is a double station tumble initiative automatic unwinding and rewinding line.

    二,Technical parameters of Color printing packaging extrusion laminating machine.

    ItemLY-ACP2-1200LY-ACP2-1400LY-ACP2-1700LY-ACP2-2200LY-ACP2-2500
    Effective laminating width:max1100mmmax1300mmmax1600mmmax2100mmmax2400mm
    Machine speed:200-250m/min
    Screw diameter:φ80mm,φ90mm,φ100mm,φ110mm
    Max unwinder&rewinder diameter:φ800mm
    Sandwich diameter:φ600mm
    Max output:180kg/h,200kg/h,300kg/h or 400kg/h
    Coated resins:LLDPE/LDPE/PP/EVA/EAA
    Laminating thickness range:8-45μm
    Base material:Aluminium foil/ Non-woven fabric /Metalized film/ BOPP/ BOPET/ BOPA,etc(10-200gsm)
    Sandwich material:CPE / CPP/ PET/Aluminium foils
    Dimension:Co-extrusion:19.55*(9.5-14)*4.7m
    Mono extrusion: 11.65*(9.5-14)*3.8m

    三,Main Features


    1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

    2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

    3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

    4) Hydraulic lamination structure design , can make coating thinner and firm .

    5) Trimming device make the finished coated paper rolls even

    6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible


    Extruder

    · Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.

    · Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.

    · The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.


    Color Packaging Film Laminating Machine With 1200/1400/1700/2200/2500mm Width


    Color Packaging Film Laminating Machine With 1200/1400/1700/2200/2500mm Width


    " Professional qualifications to create brand" is Laiyi's business objective!


    "Create excellece by quality, prvide service with honesty" is


    Laiyi's business prupose!
