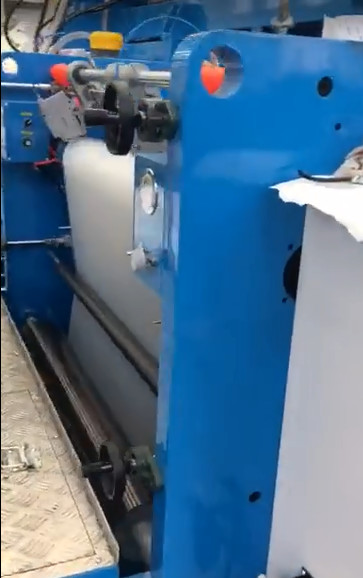

Automatic Film Roll Plastic Lamination Machine with Double Station Unwinder and Rewinder in blue and white

Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology in the new district has improved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.

Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

一, Thermal Film Extrusion Laminating Machine

Thermal film is used to BOPP thermal film, PET pre-coated film
We also make customized machine.

二,Technical parameters of Thermal film extrusion laminating machine

Machine width	1700mm/2150mm/2350mm
Effective width	Max1600mm/2000mm/2200mm
Machine speed	250-300m/min
Screw diameter	Φ90mm/Φ100mm/Φ115mm
Extruder output	Max 250kg/h /300kg/h/450kg/h
Resins	EVA
Coating thickness	5-45μm
Max unwinder and rewinder diameter	Φ800mm
Basic material	Plastic film

三, Main Features of laminating machine

1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .

2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed

3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

4) Hydraulic lamination structure design , can make coating thinner and firm .

5) Trimming device make the finished coated paper rolls even

6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible

Bead cutter equipment

Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.

Double station unwinder:

It applies to multiple materials and has a wide range of us.
It can automatically change rolls without stopping machine or reduce speed.
It has one-button and no-button type operation, is simple and conveniet.
It occupies small area, can save the production spaces.

" Professional qualifications to create brand" is Laiyi's business objective!

"Create excellece by quality, prvide service with honesty" is

Laiyi's business prupose!
