Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology in the new district has improved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.

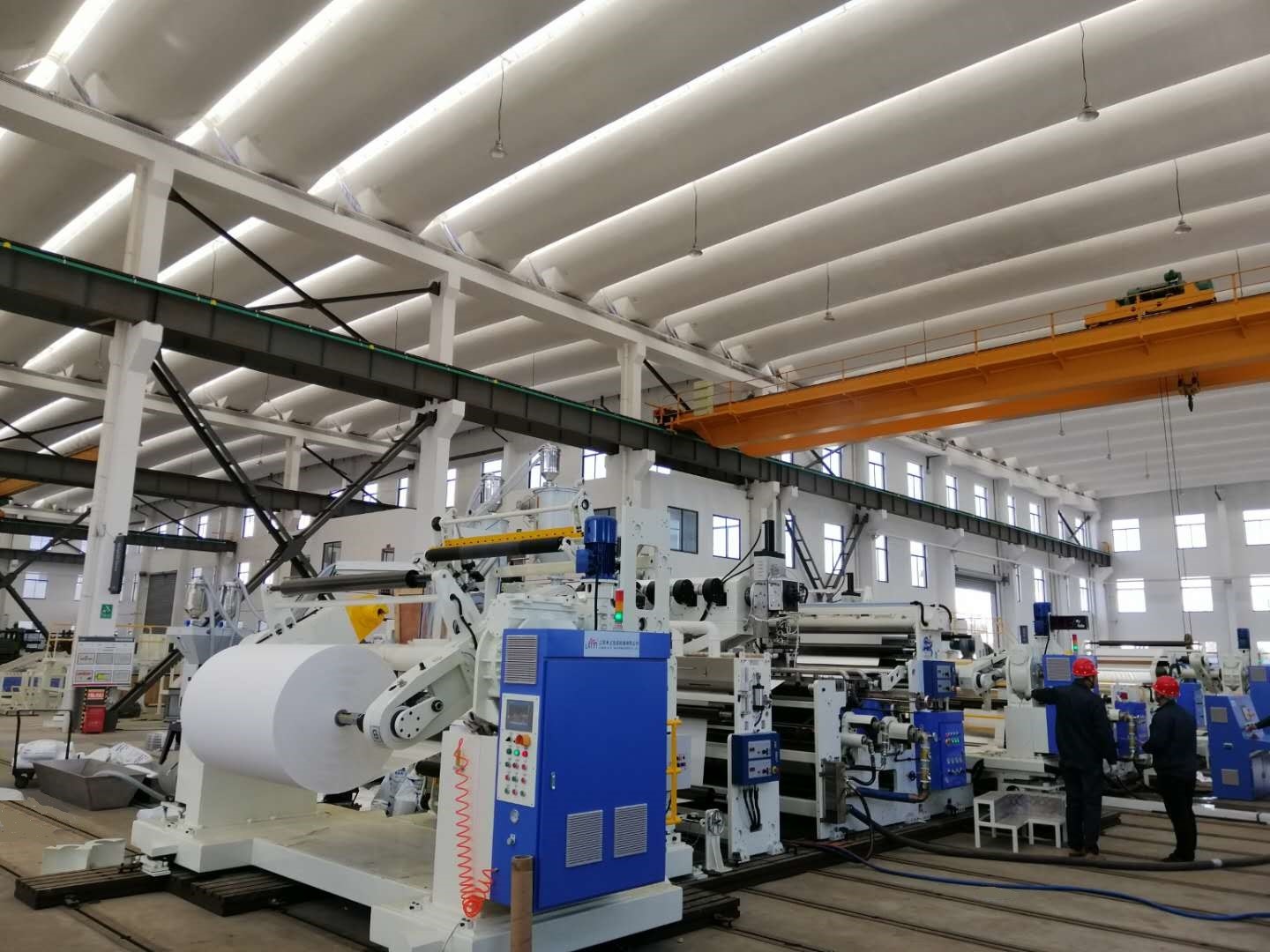

一,Release Paper Extrusion Laminating Machine

• Release paper is widely used to release papers and photo papers, etc.
• Can be single side and double side laminating.
• We also make customized machine.
• The line can be nomal or high-speed line.
• This is a double station tumble initiative automatic unwinding and rewinding line.

二,Specification of the Line:

• Two original paper rolls can be installed at the same time on the shaftless unwinder.
• Auto-splicing is controlled by computer and can be done without stopping the line.
• Web-guide device ensures that the paper/paper board passes uniformly and neatly.
• Bead cutter for edge trimming.
• Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
• Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
• Tension control system is to ensure the constant tension of rewinding.

The pre-treat unit

• The pre-treatment includes corona treatment and static elimination on the surface of base materials. Especially in extrusion coating process, corona treatment is needed to assist molten web to permeate into the pores or cottony gaps on the surface of base materials under the pressure of pressure roll, improving the adhension between coating film and base materials.
• Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.
• The corona machine is equipped with work condition indicating lamp, oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat,hyper-charger, breakdown and corona lost, and works with high-efficiency and low-consumption.

" Professional qualifications to create brand" is Laiyi's business objective!

"Create excellece by quality, prvide service with honesty" is

Laiyi's business prupose!

Jiangsu Laiyi Packing Machinery Co.,Ltd was founded in 2007 and moved to Jintan District in 2015. The new factory with enlarged scale and advanced technology has improved its brand influence and become the industry leader in the forefront of China with increasing market share in China's extrusion lamination industry.
