Double-sided 8gsm~45gsm PE Cup Paper Extrusion coating machine

Our company located at No.238 East Jinsheng Rd., Jintan District,Changzhou City, Jiangsu Province, China. Post code:213200.Covers an area over 13,000square meters, we have a large office building, 4 workshops and a warehouse. With professional R&D team, long-time cooperating suppliers, assemble team, packaging team, after-sales service team.We are able to provideour customers with machines of good quality and stable performance. Our annual sales is about USD20 Million, and keeps rising year by year.

Main Features

Specifications:

Item: LY-ADCP-1200/1400/1700

Effective laminating width: Max:1100mm/1300mm/1600mm

Machinery speed:300m/min

Screw diameter:φ100mm/φ110mm

Max output:400kg/h

Max unwinder diameter:φ1500mm

Max rewinder diameter:φ1800mm

Laminating range:8μm~45μm

Power supplier:380V-50HZ(3phase-5wires)

• The pre-treatment includes corona treatment and static elimination on the surface of base materials. Especially in extrusion coating process, corona treatment is needed to assist molten web to permeate into the pores or cottony gaps on the surface of base materials under the pressure of pressure roll, improving the adhension between coating film and base materials.
• Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.
• The corona machine is equipped with work condition indicating lamp, oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat,hyper-charger, breakdown and corona lost, and works with high-efficiency and low-consumption.

Compound machine

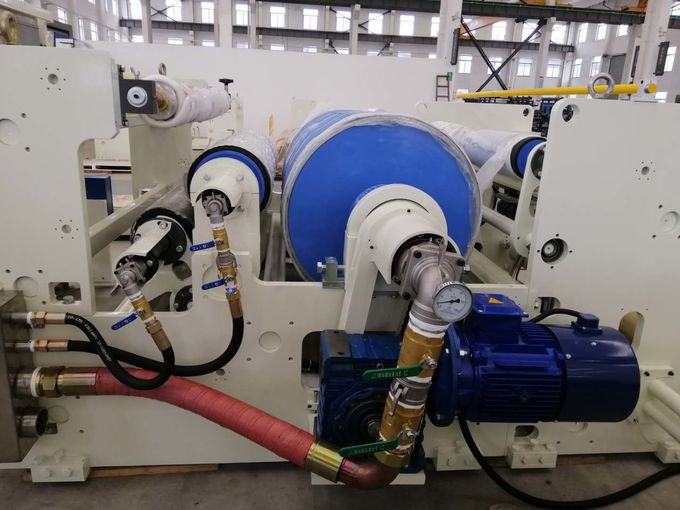

• The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
• Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.

​Bead cut equipment

• Shrink-width makes two sides thicker, as a result, the two sides of the composite material need to be trimmed, otherwise the composite material will have some quality problems such as drape, crimp and unevenness.
• It is convenient to renew cutter and adjust effective width. It can save time and labor at the same time, and makes the products flat and smooth.
